vSphere 4 – Increase a VMs Hard disk under Windows 2008

Posted on Updated on

Here’s how I recently changed the C: boot drive on a Windows 2008 VM

One of our older Windows 2008 templates has a 40GB C:\ hard disk, however I’d like it to be 50GB.

With the combination of vCenter Server 4, Windows 2008 and vSphere 4 this couldn’t be easier!

Prerequisites:

  • Have admin access to vCenter Server and the Windows server
  • A quick snapshot is always a good idea

Steps:

  • While the server is still ON, yes I said “While the server is still on”, in vCenter Server right click on the VM
  • Choose Edit Settings, Choose the Hard disk you want to expand and type in the new size, Choose OK

  • In Windows 2008 server open Server Manager, Click on Storage, Click on Disk Manager

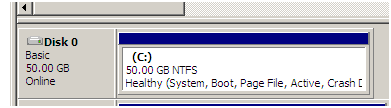

  • Note the extra space on your hard disk

  • Right Click on the C: drive and choose Extend Volume
  • Choose Next on the Welcome Screen
  • Type in the amount you want to extend by or just click next the max
  • Click Finish to start the expansion, in about 2 seconds you’re done…

3 thoughts on “vSphere 4 – Increase a VMs Hard disk under Windows 2008

    David O'Leary said:
    April 8, 2011 at 9:41 pm

    Does this work in ESXi?

    Like

    David O'Leary said:
    April 8, 2011 at 9:46 pm

    Yes, it does work in ESXi. But I did have to do a refresh of the drives before the extra space showed up and the option to Extend was enabled.

    Like

    mattman555 said:
    April 12, 2011 at 3:49 am

    Hey David – Yes this should work on ESXi. This is a function of vCenter Server less about ESX.

    Like
